Gibraltar

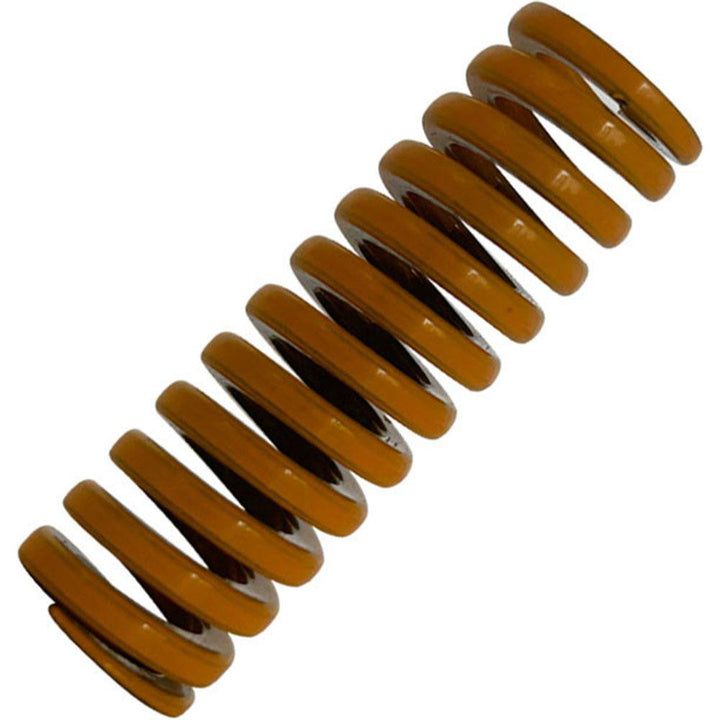

Die Spring - Gibraltar DCIB10-38
MFR# DCIB10-38
$2.15List $2.70
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB10-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.45
Duty ratingExtra Heavy-Duty
Free length in1-1/2
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.4500
Maximum deflection load lb60.00
Maximum deflection load n267.00
Rod diameter in3/16
Spring rate133.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.4567
Wire shapeTrapezoidal
