Gibraltar

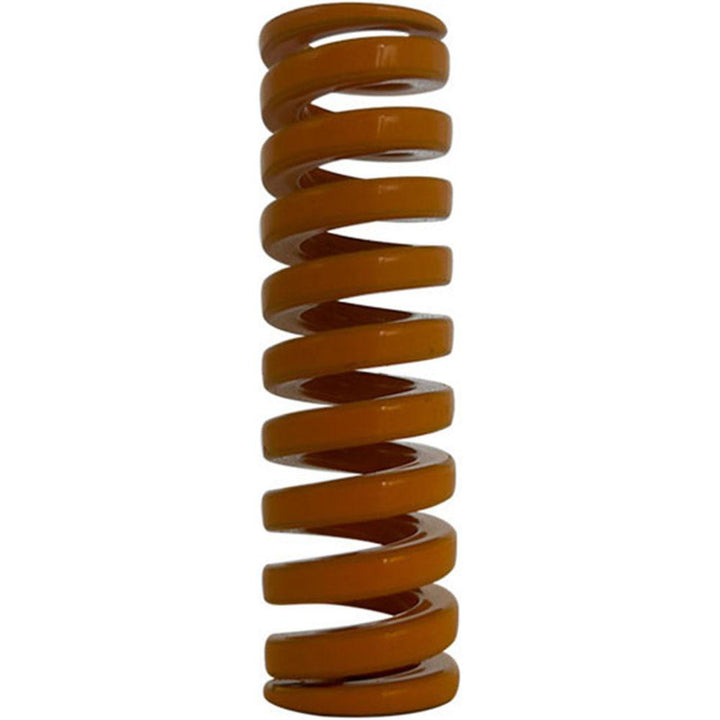

Die Spring - Gibraltar DCIB16-64
MFR# DCIB16-64
$3.39List $4.25
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB16-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.83
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8300
Maximum deflection load lb229.00
Maximum deflection load n1019.05
Rod diameter in11/32
Spring rate274.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8150
Wire shapeTrapezoidal
