Gibraltar

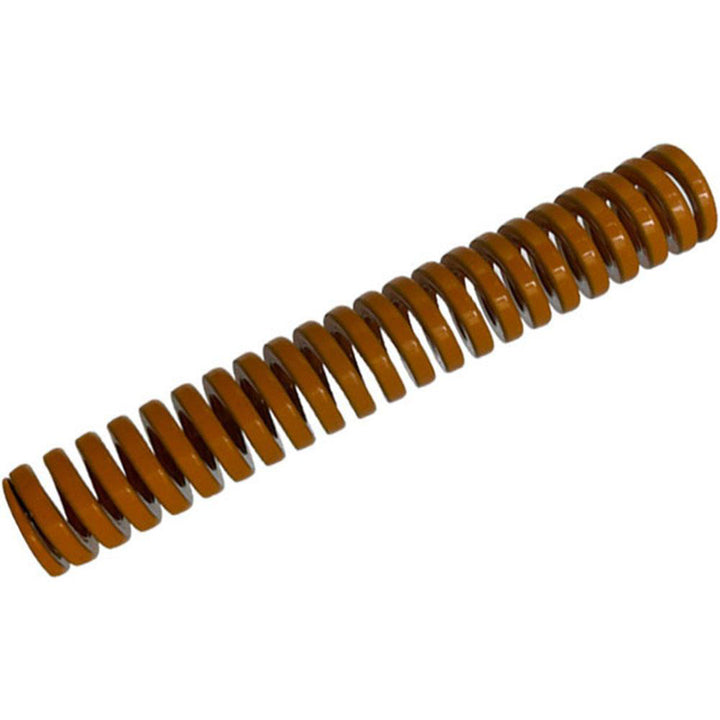

Die Spring - Gibraltar DCIB20-127
MFR# DCIB20-127
$9.11List $11.43
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB20-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load1.34
Duty ratingExtra Heavy-Duty
Free length in5
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.3400
Maximum deflection load lb413.00
Maximum deflection load n1837.85
Rod diameter in3/8
Spring rate309.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.3386
Wire shapeTrapezoidal
