Gibraltar
Die Spring - Gibraltar DCIB20-51
MFR# DCIB20-51
$4.19List $5.26
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

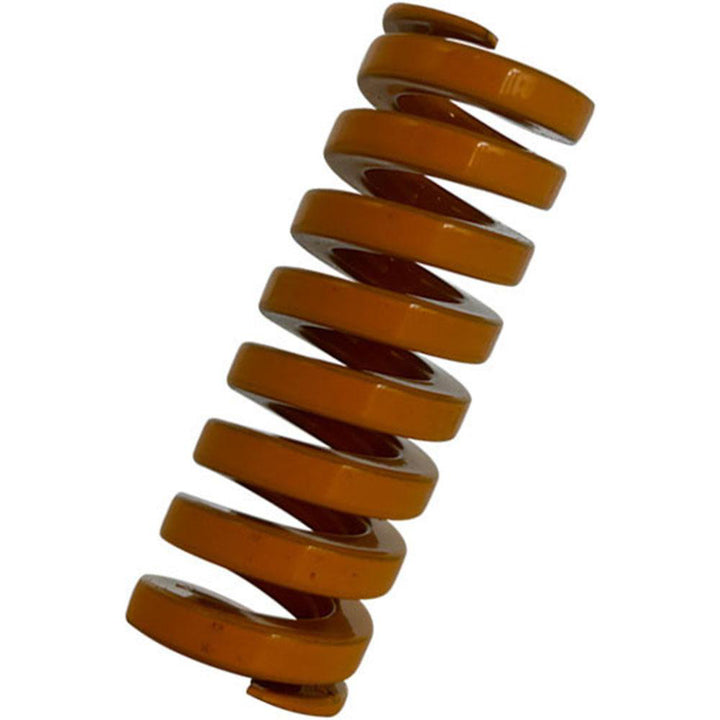

The Gibraltar DCIB20-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.56
Duty ratingExtra Heavy-Duty
Free length in2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5600
Maximum deflection load lb466.00
Maximum deflection load n2073.70
Rod diameter in3/8
Spring rate839.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5472
Wire shapeTrapezoidal
