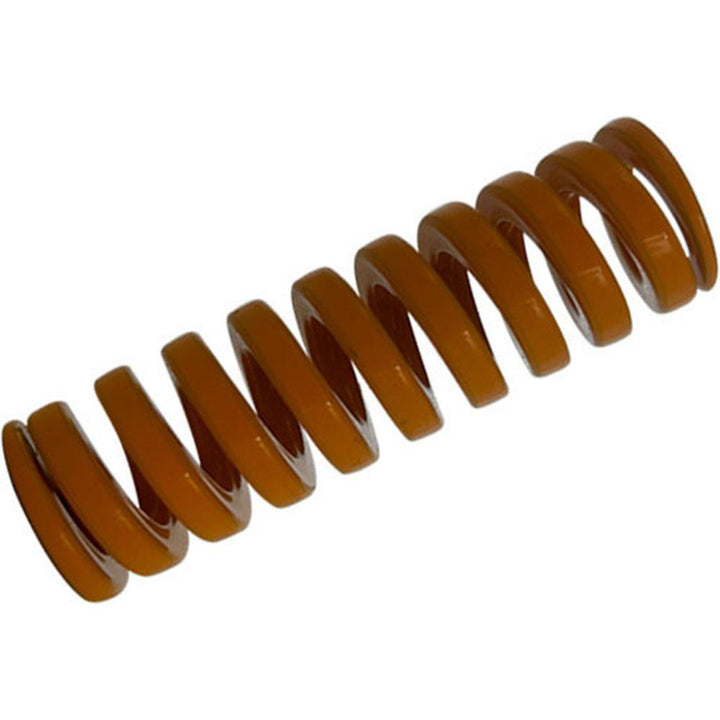

Die Spring - Gibraltar DCIB20-64
MFR# DCIB20-64
$4.69List $5.89
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB20-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.7
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7000
Maximum deflection load lb461.00
Maximum deflection load n2051.45
Rod diameter in3/8
Spring rate655.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6850
Wire shapeTrapezoidal
