Gibraltar

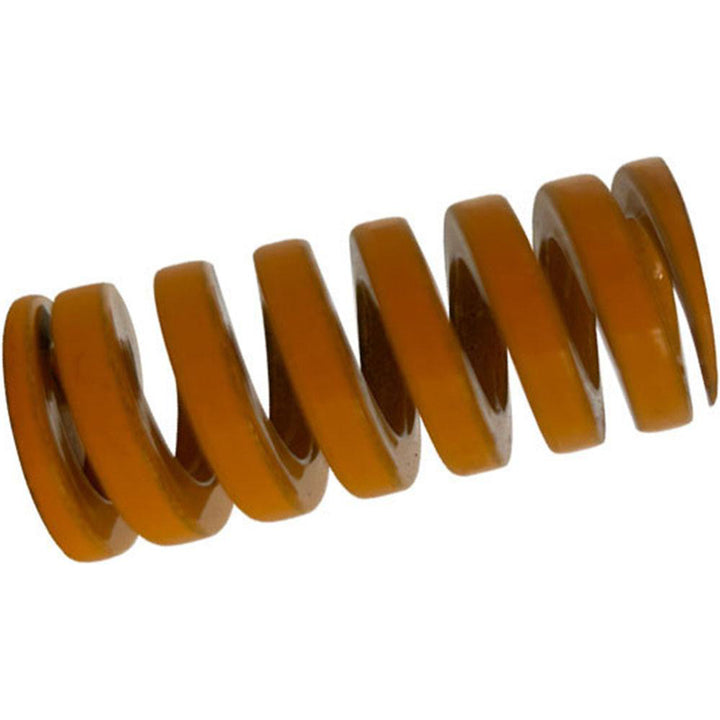

Die Spring - Gibraltar DCIB25-44
MFR# DCIB25-44
$6.09List $7.65
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB25-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.53
Duty ratingExtra Heavy-Duty
Free length in1-3/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5300
Maximum deflection load lb717.00
Maximum deflection load n3190.65
Rod diameter in1/2
Spring rate1349.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5492
Wire shapeTrapezoidal
