Gibraltar
Die Spring - Gibraltar DCIB25-51
MFR# DCIB25-51
$6.52List $8.04
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

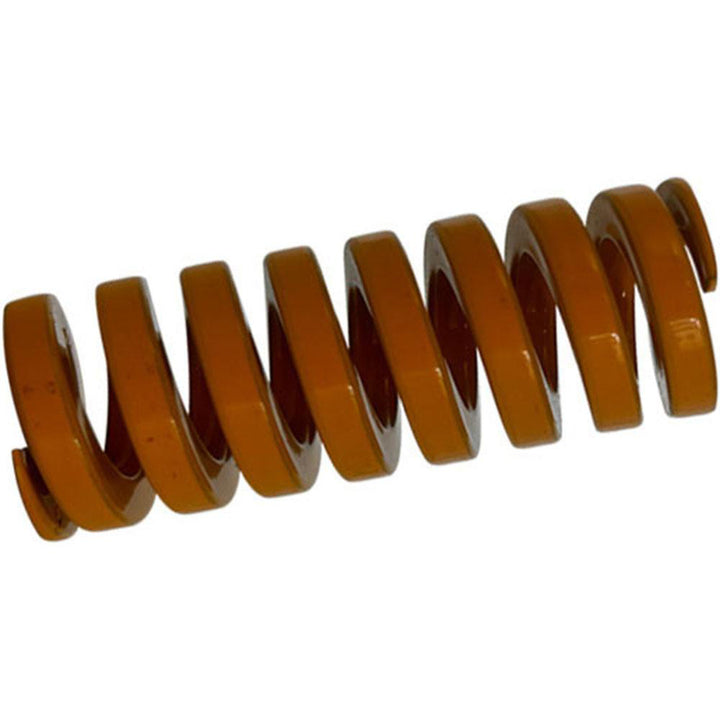

The Gibraltar DCIB25-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.6
Duty ratingExtra Heavy-Duty
Free length in2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6000
Maximum deflection load lb677.00
Maximum deflection load n3012.65
Rod diameter in1/2
Spring rate1124.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5945
Wire shapeTrapezoidal
