Gibraltar

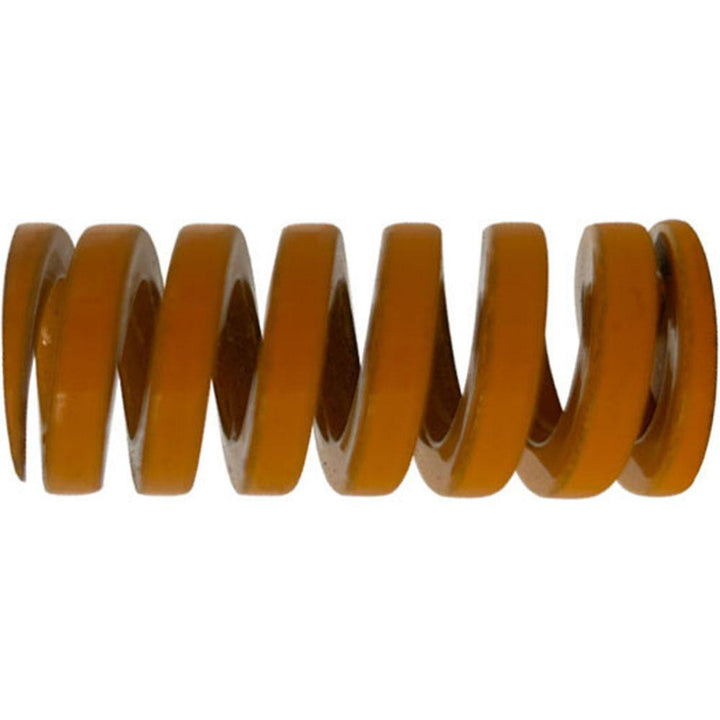

Die Spring - Gibraltar DCIB32-44
MFR# DCIB32-44
$7.89List $9.90
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB32-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.5
Duty ratingExtra Heavy-Duty
Free length in1-3/4
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5000
Maximum deflection load lb1199.00
Maximum deflection load n5335.55
Rod diameter in5/8
Spring rate2398.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5177
Wire shapeTrapezoidal
