Gibraltar

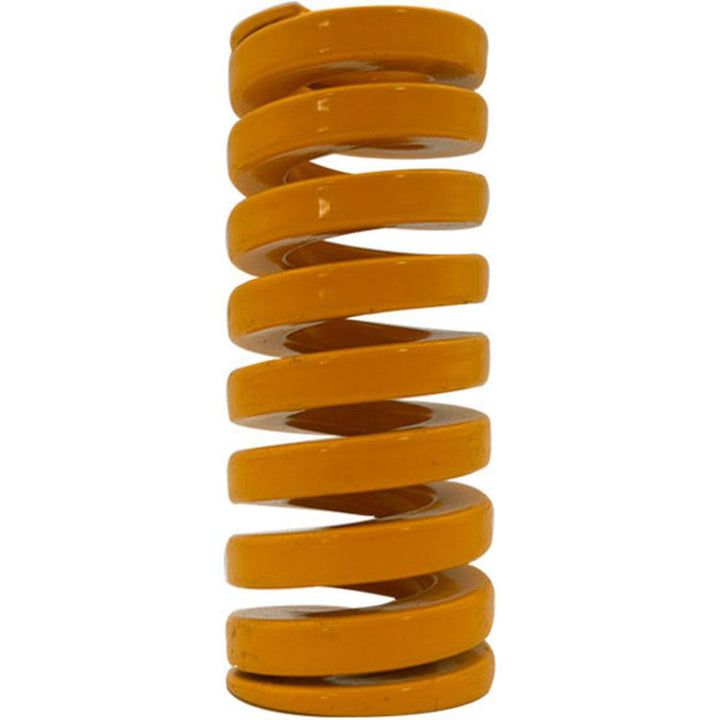

Die Spring - Gibraltar DCIB32-76
MFR# DCIB32-76
$10.23List $12.83
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB32-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.92
Duty ratingExtra Heavy-Duty
Free length in3
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9200
Maximum deflection load lb1192.00
Maximum deflection load n5304.40
Rod diameter in5/8
Spring rate1294.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9291
Wire shapeTrapezoidal
