Gibraltar

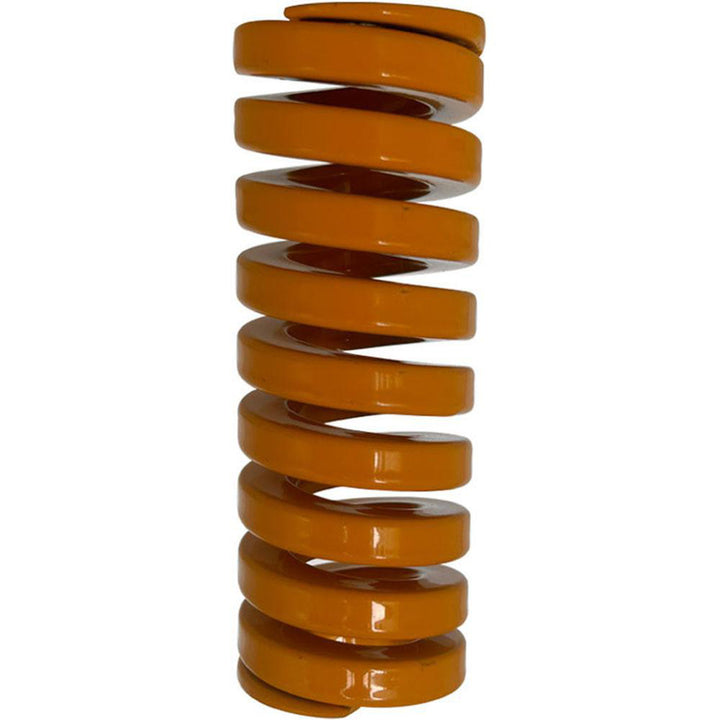

Die Spring - Gibraltar DCIB40-102
MFR# DCIB40-102
$20.26List $25.00
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB40-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load1.23
Duty ratingExtra Heavy-Duty
Free length in4
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.2300
Maximum deflection load lb1927.00
Maximum deflection load n8575.15
Rod diameter in3/4
Spring rate1563.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.2165
Wire shapeTrapezoidal
