Gibraltar

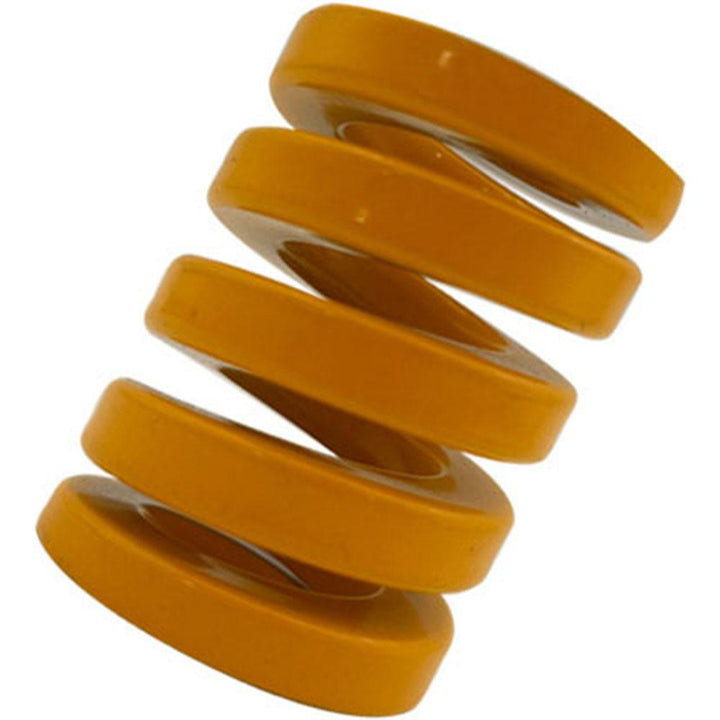

Die Spring - Gibraltar DCIB40-51
MFR# DCIB40-51
$12.62List $15.84
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB40-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.57
Duty ratingExtra Heavy-Duty
Free length in2
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5700
Maximum deflection load lb1932.00
Maximum deflection load n8597.40
Rod diameter in3/4
Spring rate3361.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5669
Wire shapeTrapezoidal
