Gibraltar

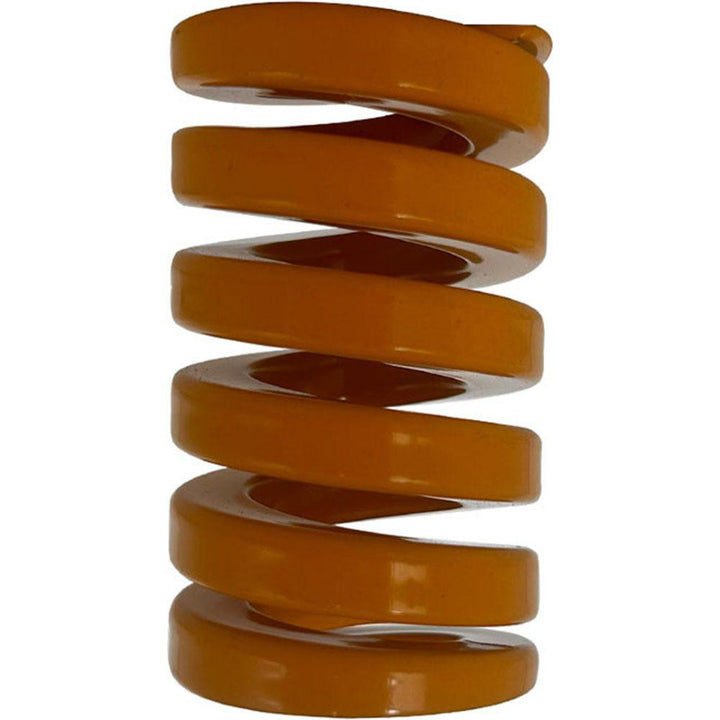

Die Spring - Gibraltar DCIB40-64
MFR# DCIB40-64
$14.38List $18.06
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIB40-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load0.72
Duty ratingExtra Heavy-Duty
Free length in2-1/2
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7200
Maximum deflection load lb1863.00
Maximum deflection load n8290.35
Rod diameter in3/4
Spring rate2586.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7008
Wire shapeTrapezoidal
