Gibraltar
Die Spring - Gibraltar DCIB50-178
MFR# DCIB50-178
$47.17List $59.20
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

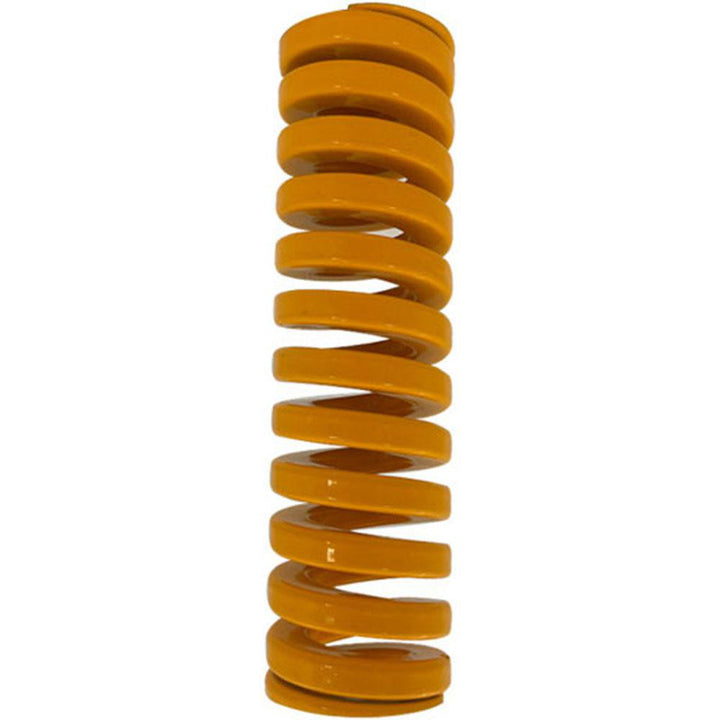

The Gibraltar DCIB50-178 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorYellow
Compressed length at maximum load2.35
Duty ratingExtra Heavy-Duty
Free length in7
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.3500
Maximum deflection load lb2808.00
Maximum deflection load n12495.60
Rod diameter in1
Spring rate1193.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.3465
Wire shapeTrapezoidal
