Gibraltar

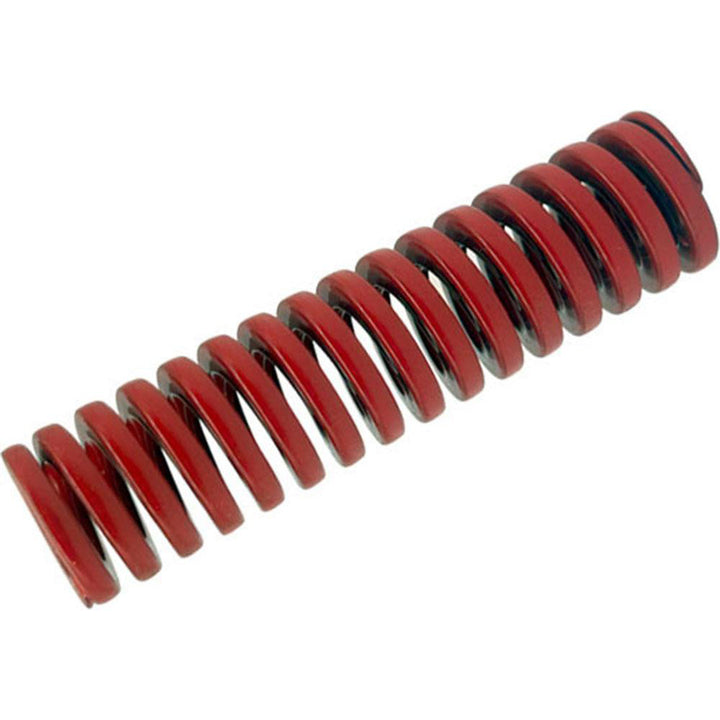

Die Spring - Gibraltar DCIH12.5-64
MFR# DCIH12.5-64
$3.15List $3.96
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH12.5-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.15
Duty ratingHeavy-Duty
Free length in2-1/2
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.1500
Maximum deflection load lb100.00
Maximum deflection load n445.00
Rod diameter in9/32
Spring rate87.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.1299
Wire shapeTrapezoidal
