Gibraltar
Die Spring - Gibraltar DCIH16-38
MFR# DCIH16-38
$2.46List $3.09
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

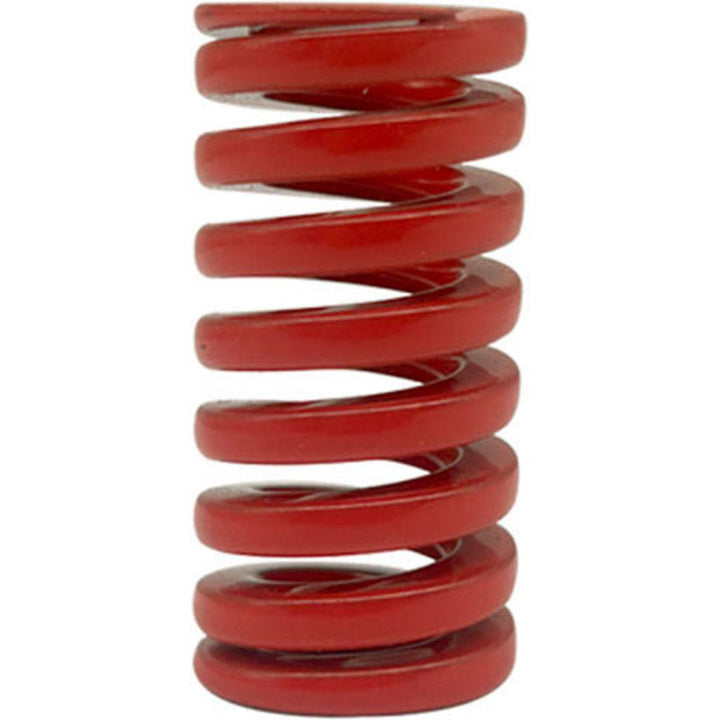

The Gibraltar DCIH16-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.61
Duty ratingHeavy-Duty
Free length in1-1/2
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6100
Maximum deflection load lb177.00
Maximum deflection load n787.65
Rod diameter in11/32
Spring rate290.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6142
Wire shapeTrapezoidal
