Gibraltar

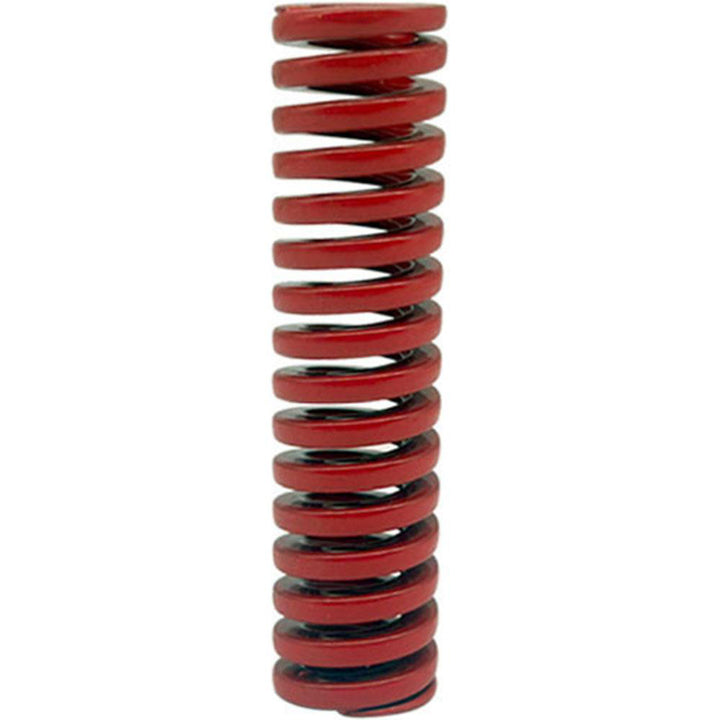

Die Spring - Gibraltar DCIH20-64
MFR# DCIH20-64
$4.42List $5.54
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH20-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.79
Duty ratingHeavy-Duty
Free length in2-1/2
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7900
Maximum deflection load lb334.00
Maximum deflection load n1486.30
Rod diameter in3/8
Spring rate424.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7677
Wire shapeTrapezoidal
