Gibraltar

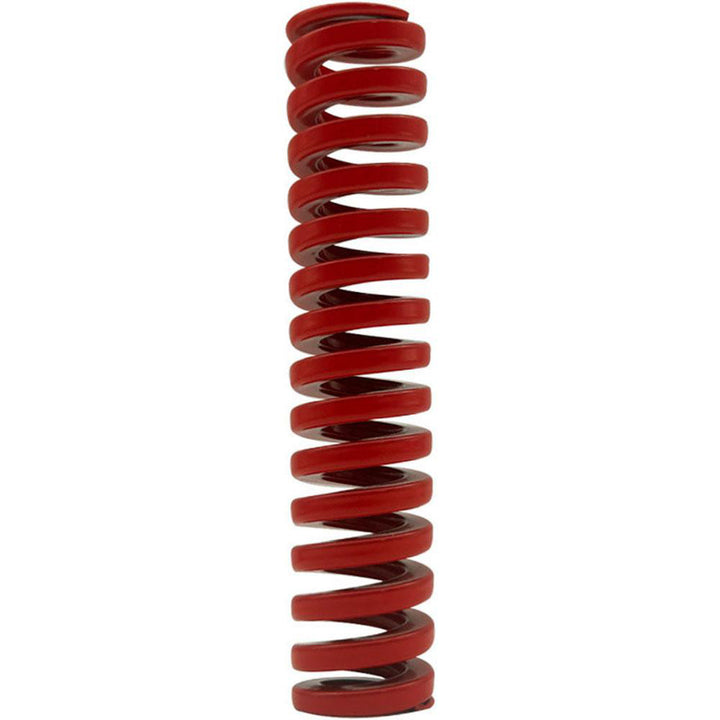

Die Spring - Gibraltar DCIH20-76
MFR# DCIH20-76
$4.71List $5.91
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH20-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.97
Duty ratingHeavy-Duty
Free length in3
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9700
Maximum deflection load lb347.00
Maximum deflection load n1544.15
Rod diameter in3/8
Spring rate359.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9764
Wire shapeTrapezoidal
