Gibraltar

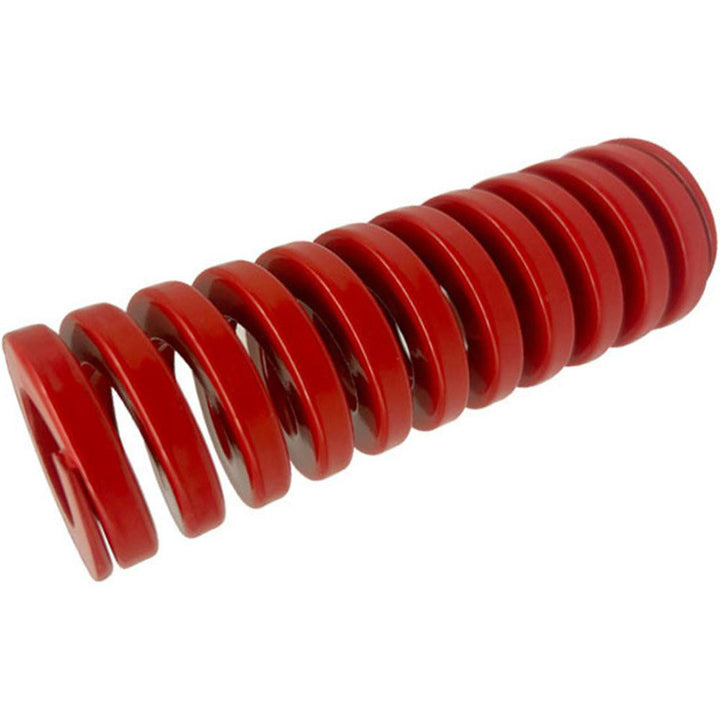

Die Spring - Gibraltar DCIH25-114
MFR# DCIH25-114
$7.77List $9.59
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH25-114 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.62
Duty ratingHeavy-Duty
Free length in4-1/2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.6200
Maximum deflection load lb654.00
Maximum deflection load n2910.30
Rod diameter in1/2
Spring rate403.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.5945
Wire shapeTrapezoidal
