Gibraltar

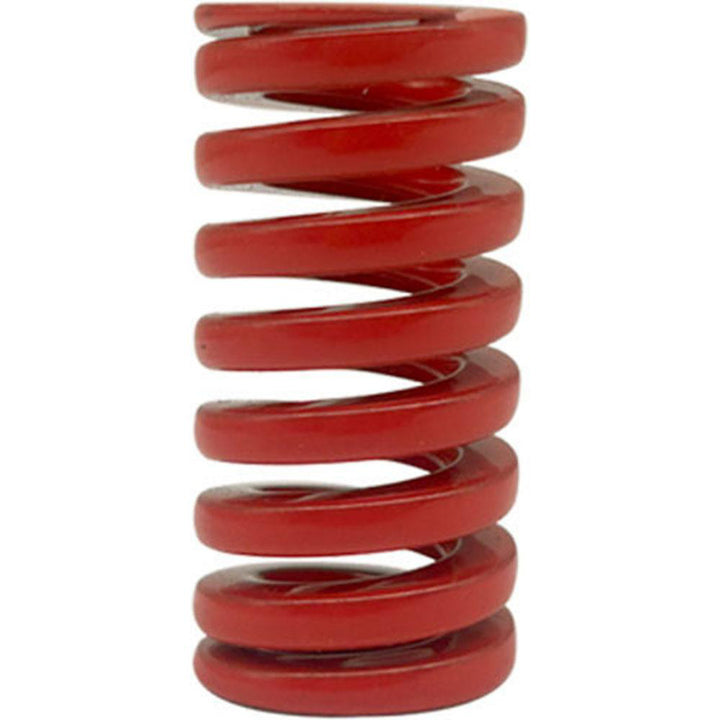

Die Spring - Gibraltar DCIH25-32
MFR# DCIH25-32
$4.36List $5.47
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH25-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.41
Duty ratingHeavy-Duty
Free length in1-1/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.4100
Maximum deflection load lb650.00
Maximum deflection load n2892.50
Rod diameter in1/2
Spring rate1603.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.3957
Wire shapeTrapezoidal
