Gibraltar
Die Spring - Gibraltar DCIH25-44
MFR# DCIH25-44
$4.71List $5.92
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

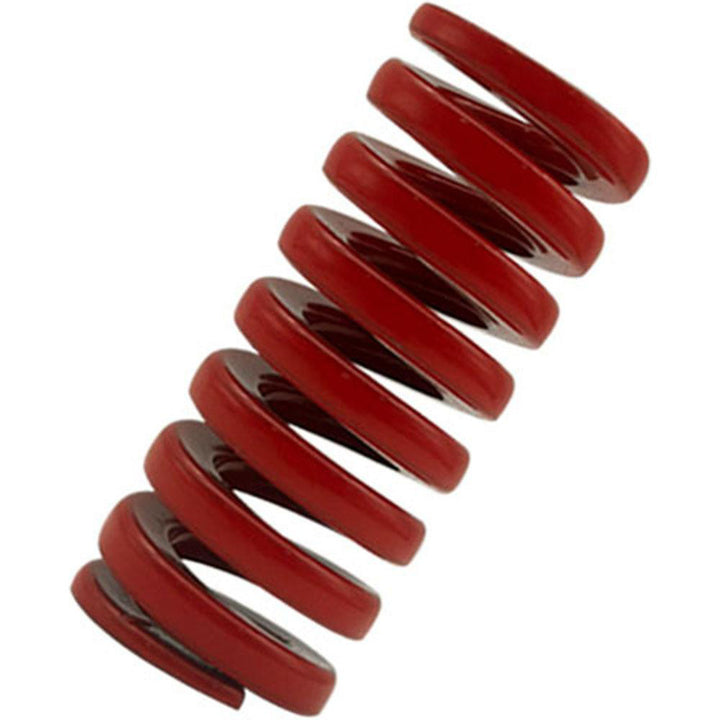

The Gibraltar DCIH25-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.61
Duty ratingHeavy-Duty
Free length in1-3/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6100
Maximum deflection load lb697.00
Maximum deflection load n3101.65
Rod diameter in1/2
Spring rate1149.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6240
Wire shapeTrapezoidal
