Gibraltar
Die Spring - Gibraltar DCIH25-76
MFR# DCIH25-76
$5.82List $7.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

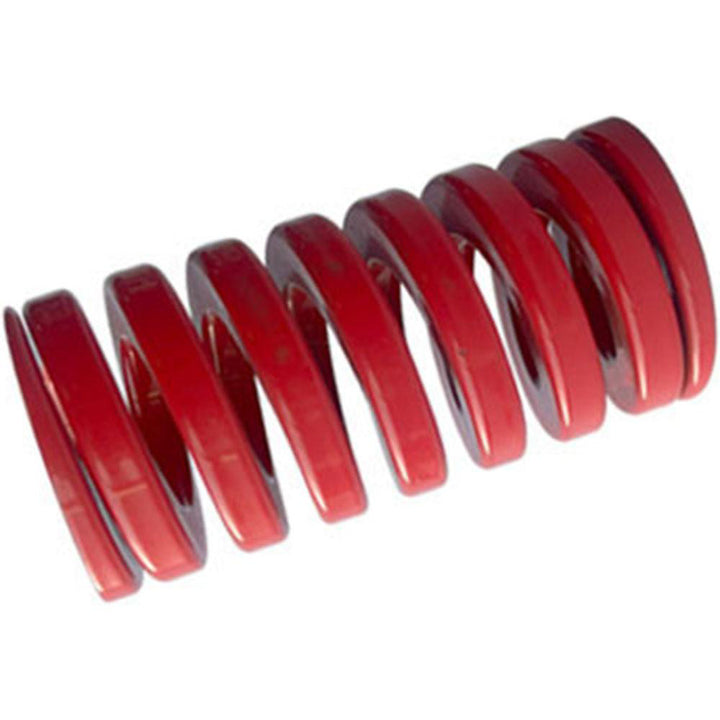

The Gibraltar DCIH25-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.02
Duty ratingHeavy-Duty
Free length in3
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.0200
Maximum deflection load lb627.00
Maximum deflection load n2790.15
Rod diameter in1/2
Spring rate613.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.0315
Wire shapeTrapezoidal
