Gibraltar

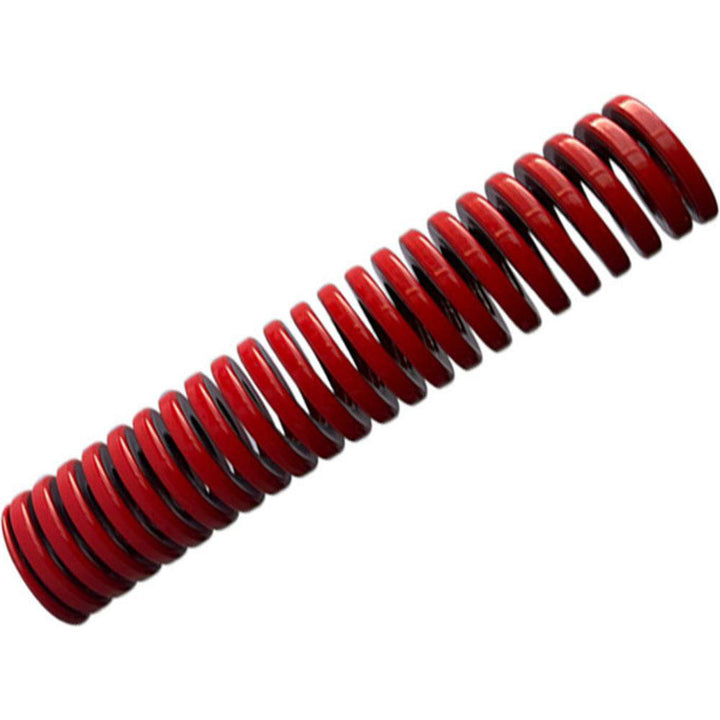

Die Spring - Gibraltar DCIH32-127
MFR# DCIH32-127
$12.14List $14.98
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH32-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.71
Duty ratingHeavy-Duty
Free length in5
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.7100
Maximum deflection load lb963.00
Maximum deflection load n4285.35
Rod diameter in5/8
Spring rate564.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.7087
Wire shapeTrapezoidal
