Gibraltar

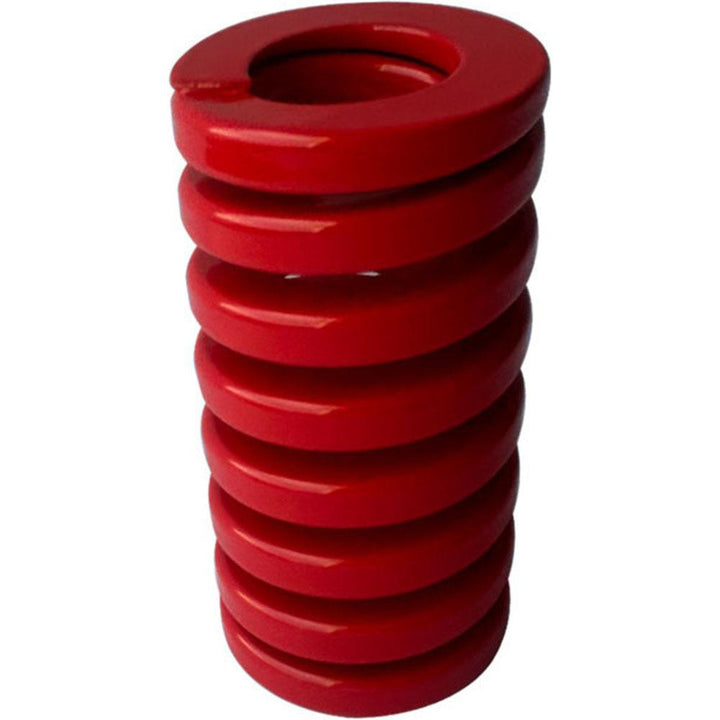

Die Spring - Gibraltar DCIH32-89
MFR# DCIH32-89
$8.80List $10.85
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH32-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1.14
Duty ratingHeavy-Duty
Free length in3-1/2
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.1400
Maximum deflection load lb922.00
Maximum deflection load n4102.90
Rod diameter in5/8
Spring rate808.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.1378
Wire shapeTrapezoidal
