Gibraltar

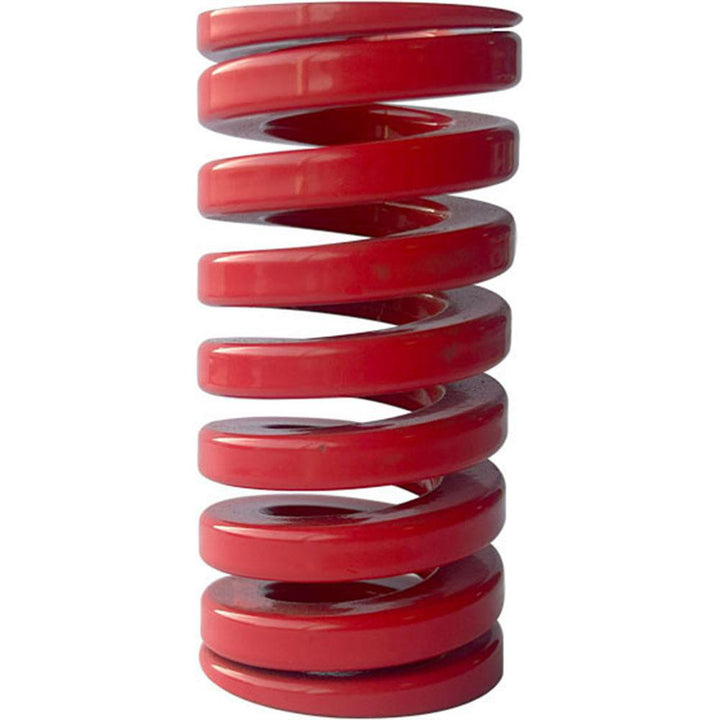

Die Spring - Gibraltar DCIH40-76
MFR# DCIH40-76
$11.63List $14.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH40-76 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load1
Duty ratingHeavy-Duty
Free length in3
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.0000
Maximum deflection load lb1334.00
Maximum deflection load n5936.30
Rod diameter in3/4
Spring rate1334.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.0079
Wire shapeTrapezoidal
