Gibraltar

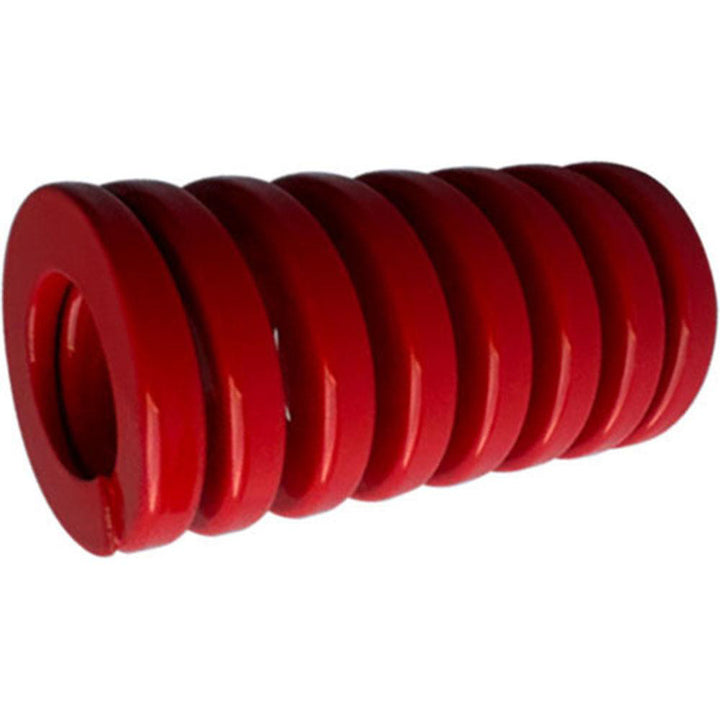

Die Spring - Gibraltar DCIH50-64
MFR# DCIH50-64
$16.86List $21.17
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIH50-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorRed
Compressed length at maximum load0.91
Duty ratingHeavy-Duty
Free length in2-1/2
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9100
Maximum deflection load lb2203.00
Maximum deflection load n9803.35
Rod diameter in1
Spring rate2423.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8898
Wire shapeTrapezoidal
