Gibraltar

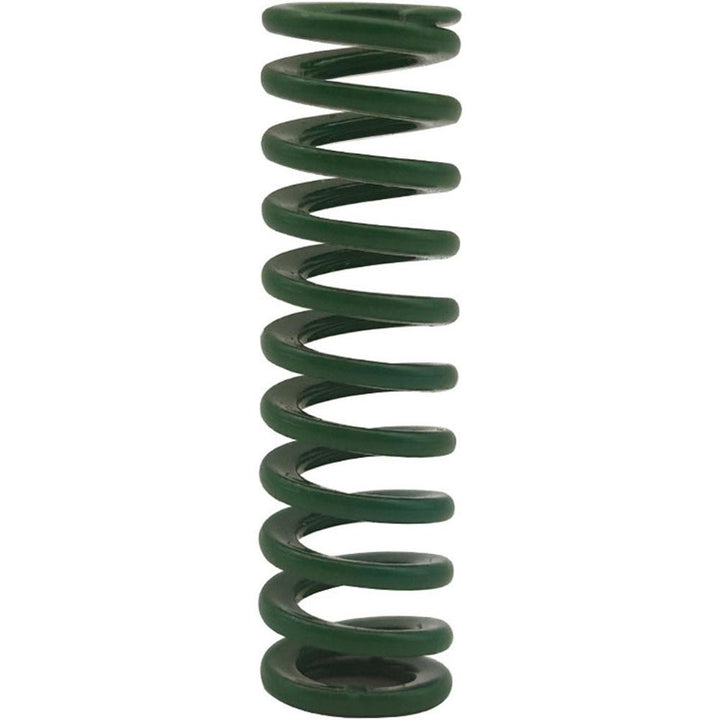

Die Spring - Gibraltar DCIL10-32
MFR# DCIL10-32
$1.63List $2.04
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL10-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.68
Duty ratingLight-Duty
Free length in1-1/4
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6800
Maximum deflection load lb39.00
Maximum deflection load n173.55
Rod diameter in3/16
Spring rate57.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6713
Wire shapeTrapezoidal
