Gibraltar

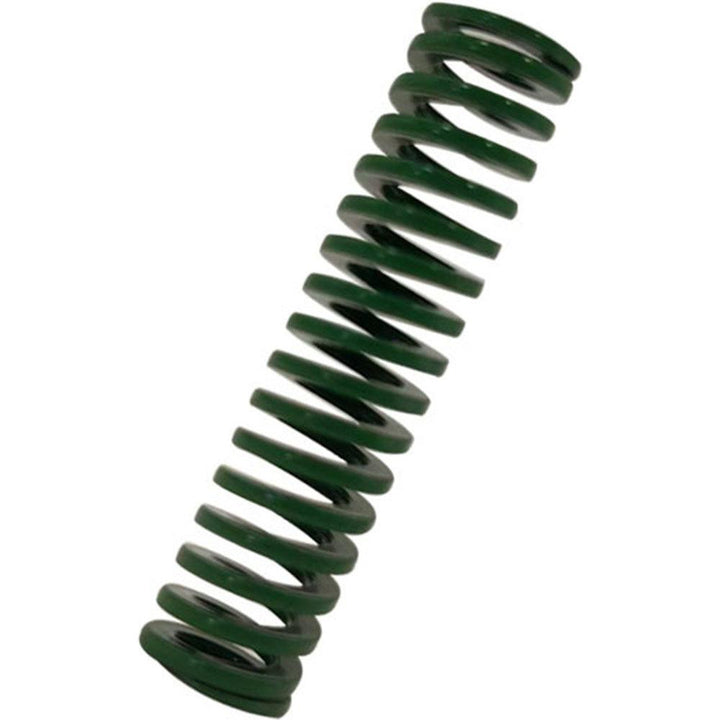

Die Spring - Gibraltar DCIL10-51
MFR# DCIL10-51
$2.00List $2.51
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL10-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.09
Duty ratingLight-Duty
Free length in2
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.0900
Maximum deflection load lb39.00
Maximum deflection load n173.55
Rod diameter in3/16
Spring rate36.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.0787
Wire shapeTrapezoidal
