Gibraltar

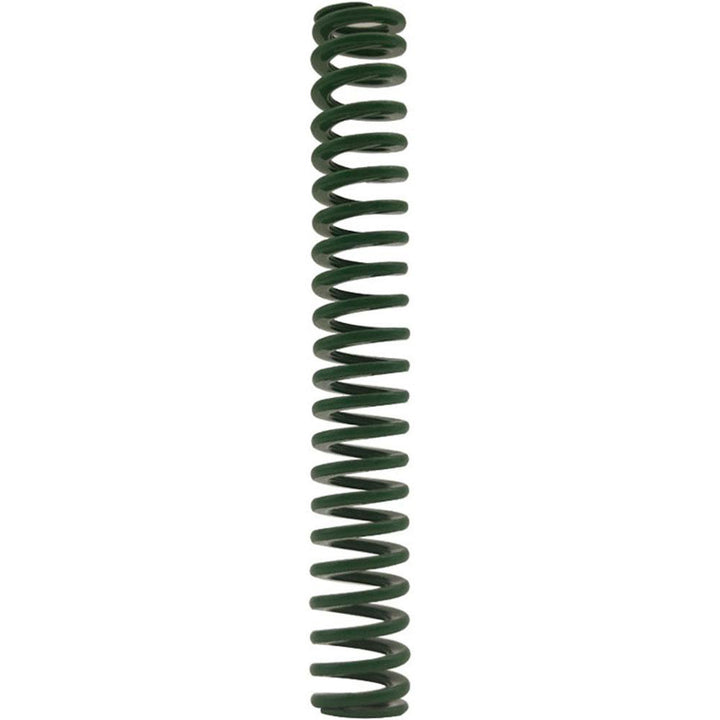

Die Spring - Gibraltar DCIL10-64
MFR# DCIL10-64
$2.27List $2.85
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL10-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.48
Duty ratingLight-Duty
Free length in2-1/2
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.4800
Maximum deflection load lb45.00
Maximum deflection load n200.25
Rod diameter in3/16
Spring rate30.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.4567
Wire shapeTrapezoidal
