Gibraltar

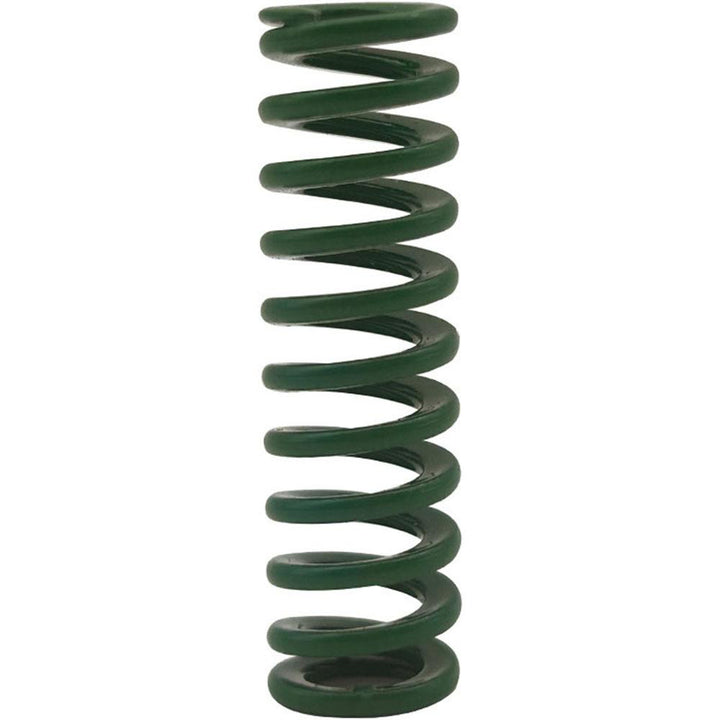

Die Spring - Gibraltar DCIL12.5-32
MFR# DCIL12.5-32
$1.59List $1.96
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL12.5-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.82
Duty ratingLight-Duty
Free length in1-1/4
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8200
Maximum deflection load lb69.00
Maximum deflection load n307.05
Rod diameter in9/32
Spring rate85.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8091
Wire shapeTrapezoidal
