Gibraltar

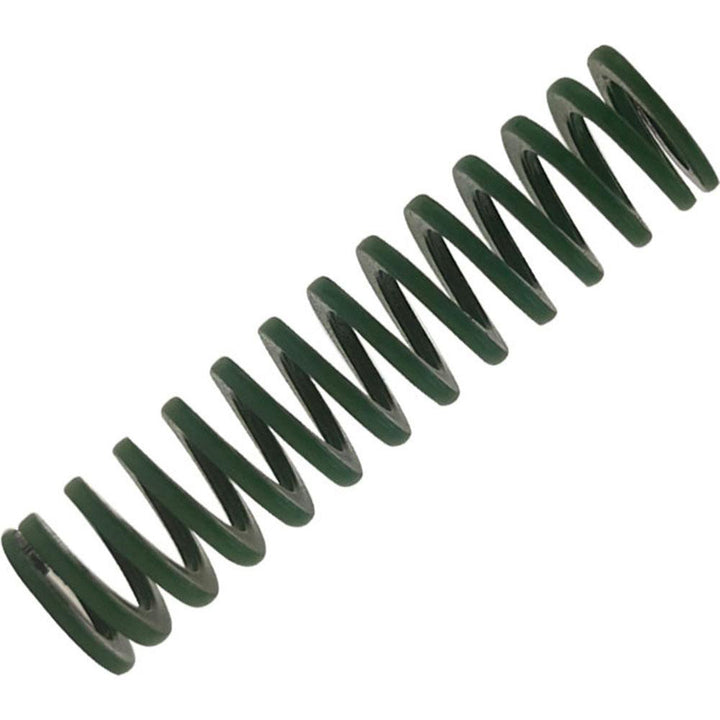

Die Spring - Gibraltar DCIL12.5-38
MFR# DCIL12.5-38
$1.68List $2.12
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL12.5-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.99
Duty ratingLight-Duty
Free length in1-1/2
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9900
Maximum deflection load lb72.00
Maximum deflection load n320.40
Rod diameter in9/32
Spring rate73.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9961
Wire shapeTrapezoidal
