Gibraltar

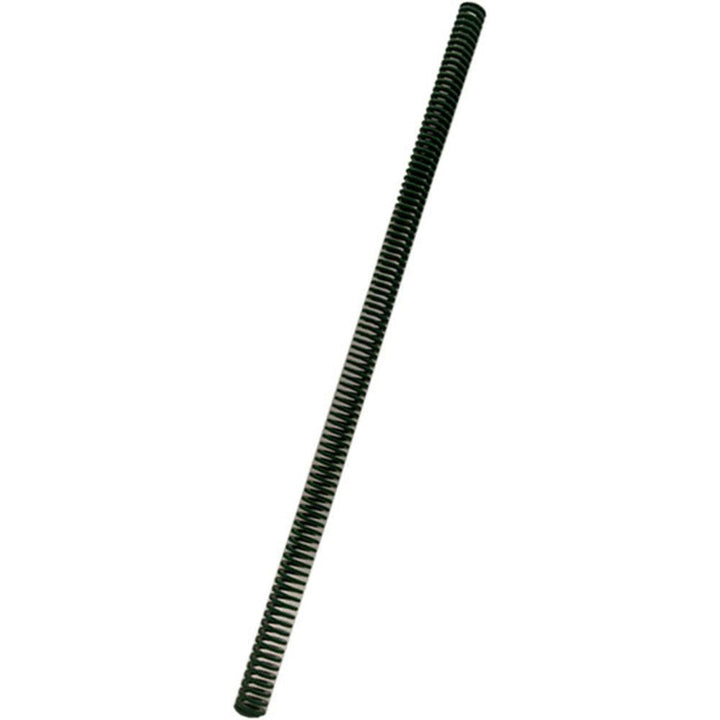

Die Spring - Gibraltar DCIL16-305
MFR# DCIL16-305
$10.92List $13.47
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL16-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load7.44
Duty ratingLight-Duty
Free length in12
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection7.4400
Maximum deflection load lb109.00
Maximum deflection load n485.05
Rod diameter in11/32
Spring rate15.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load7.4291
Wire shapeTrapezoidal
