Gibraltar

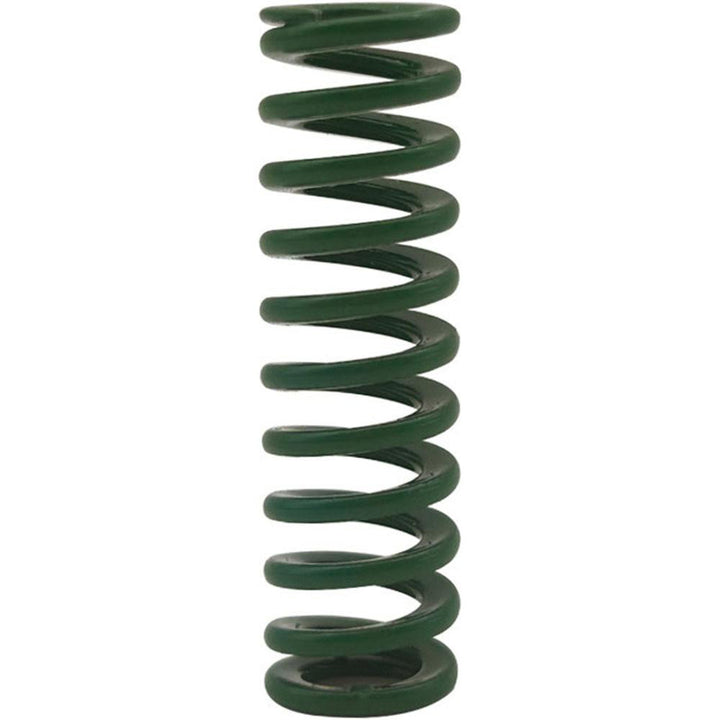

Die Spring - Gibraltar DCIL16-32
MFR# DCIL16-32
$2.03List $2.55
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL16-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.69
Duty ratingLight-Duty
Free length in1-1/4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6900
Maximum deflection load lb92.00
Maximum deflection load n409.40
Rod diameter in11/32
Spring rate133.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6831
Wire shapeTrapezoidal
