Gibraltar

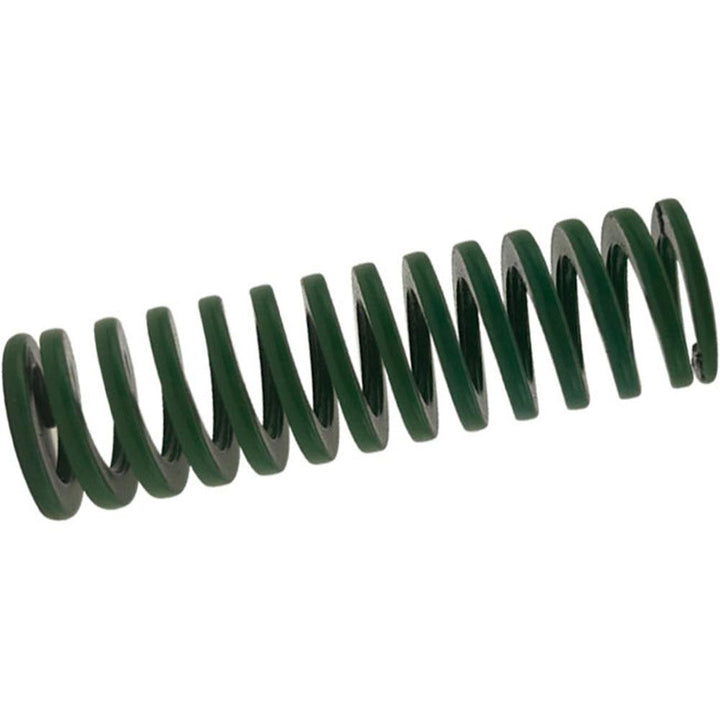

Die Spring - Gibraltar DCIL16-44
MFR# DCIL16-44
$2.31List $2.89
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL16-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.02
Duty ratingLight-Duty
Free length in1-3/4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.0200
Maximum deflection load lb104.00
Maximum deflection load n462.80
Rod diameter in11/32
Spring rate102.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.0335
Wire shapeTrapezoidal
