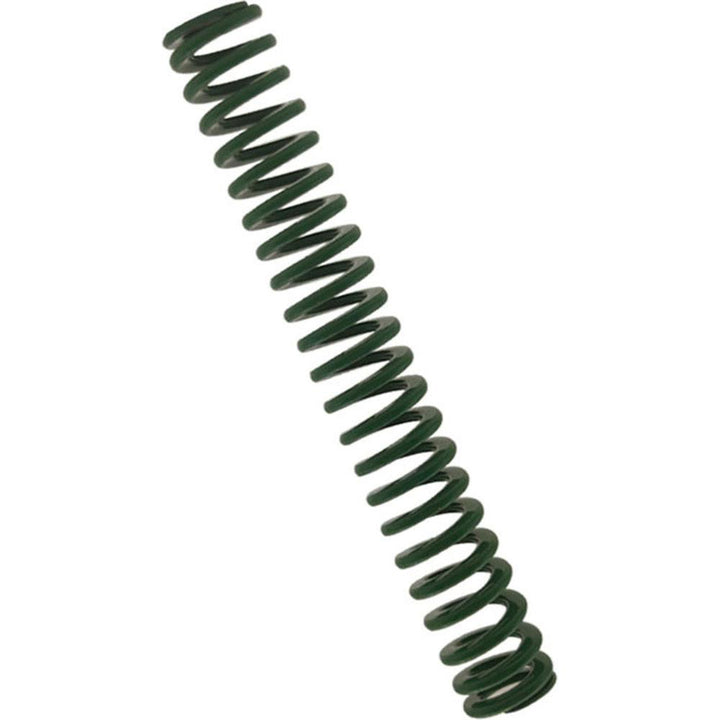

Die Spring - Gibraltar DCIL16-64
MFR# DCIL16-64
$2.66List $3.33
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL16-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.54
Duty ratingLight-Duty
Free length in2-1/2
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.5400
Maximum deflection load lb111.00
Maximum deflection load n493.95
Rod diameter in11/32
Spring rate72.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.5197
Wire shapeTrapezoidal
