Gibraltar

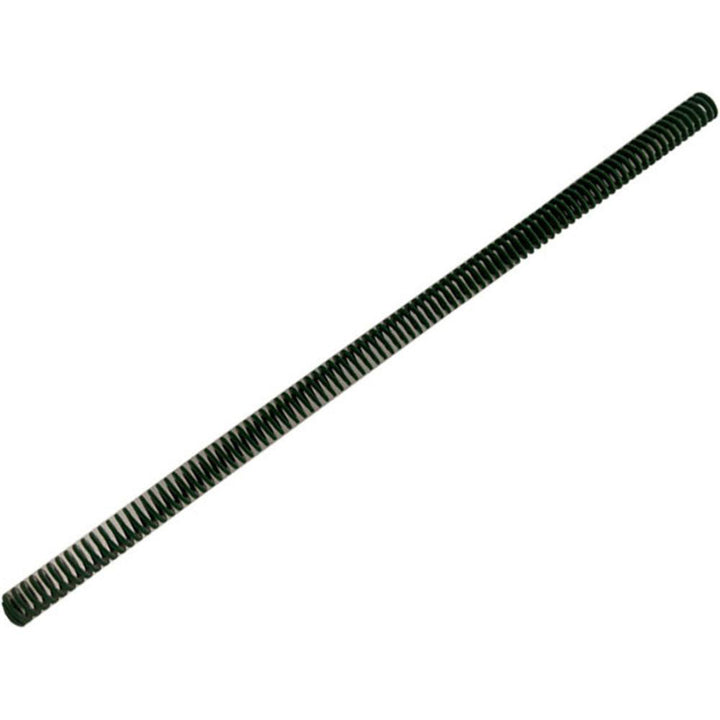

Die Spring - Gibraltar DCIL20-305
MFR# DCIL20-305
$13.74List $16.95
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL20-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load6.68
Duty ratingLight-Duty
Free length in12
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection6.6800
Maximum deflection load lb146.00
Maximum deflection load n649.70
Rod diameter in3/8
Spring rate22.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load6.6693
Wire shapeTrapezoidal
