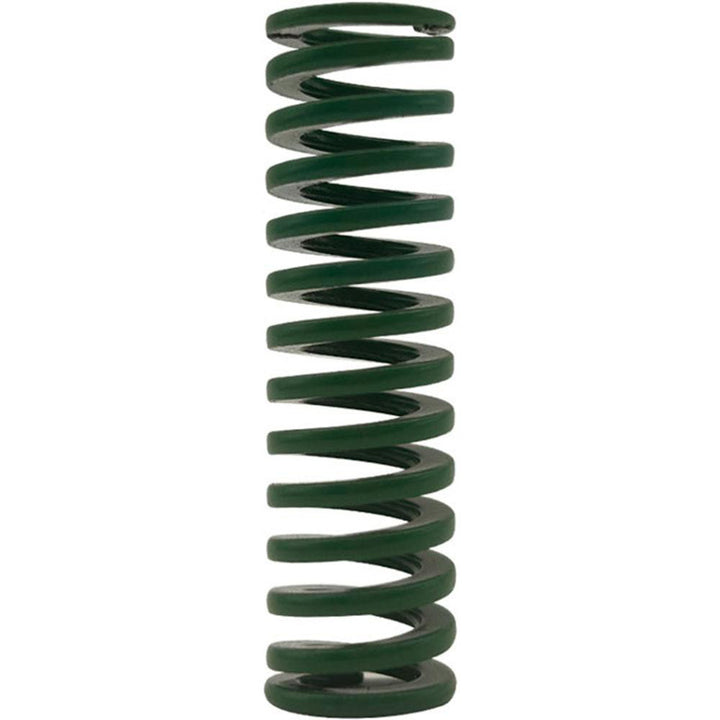

Die Spring - Gibraltar DCIL20-44
MFR# DCIL20-44
$3.27List $4.10
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL20-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.91
Duty ratingLight-Duty
Free length in1-3/4
Hole diameter in3/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9100
Maximum deflection load lb143.00
Maximum deflection load n636.35
Rod diameter in3/8
Spring rate158.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9232
Wire shapeTrapezoidal
