Gibraltar

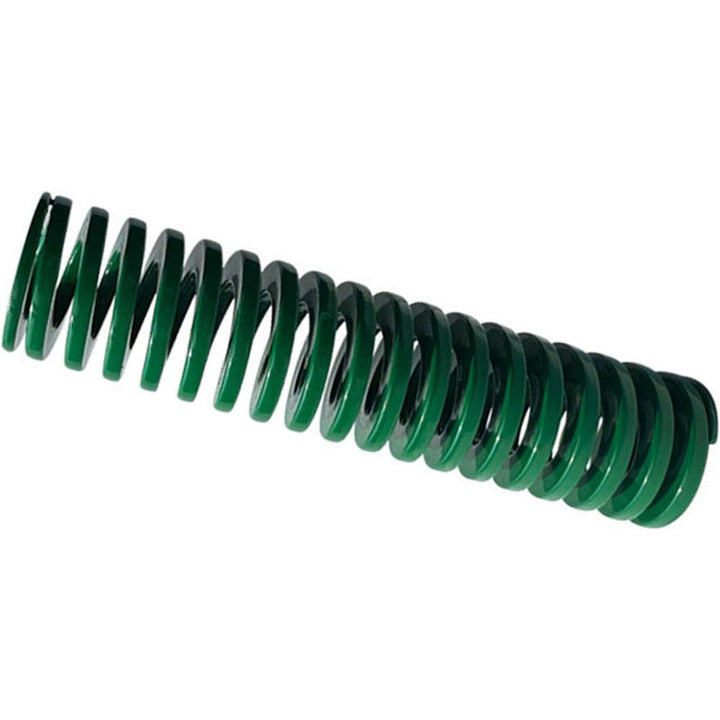

Die Spring - Gibraltar DCIL25-102
MFR# DCIL25-102
$5.65List $6.97
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.11
Duty ratingLight-Duty
Free length in4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.1100
Maximum deflection load lb248.00
Maximum deflection load n1103.60
Rod diameter in1/2
Spring rate118.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.0945
Wire shapeTrapezoidal
