Gibraltar

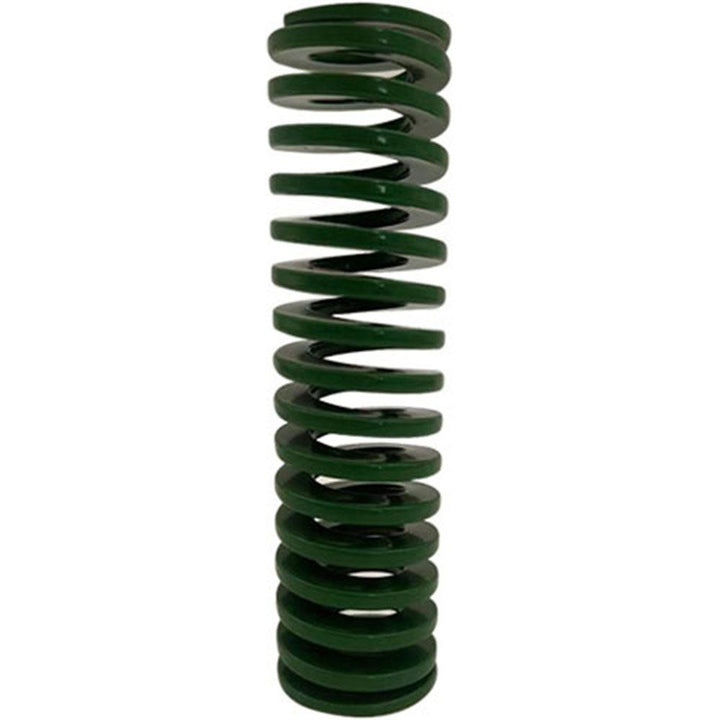

Die Spring - Gibraltar DCIL25-114
MFR# DCIL25-114
$6.38List $8.01
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-114 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.42
Duty ratingLight-Duty
Free length in4-1/2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.4200
Maximum deflection load lb257.00
Maximum deflection load n1143.65
Rod diameter in1/2
Spring rate106.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.3937
Wire shapeTrapezoidal
