Gibraltar

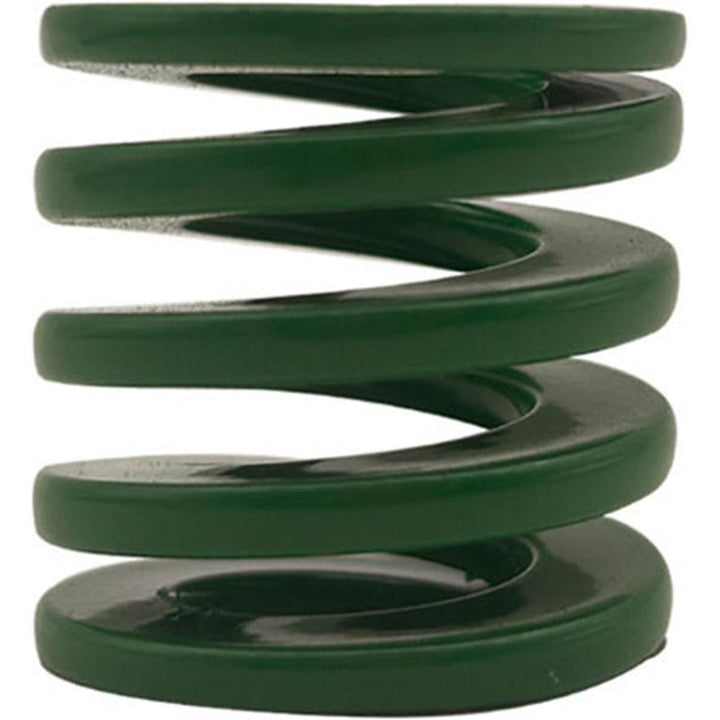

Die Spring - Gibraltar DCIL25-25
MFR# DCIL25-25
$3.07List $3.86
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-25 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.52
Duty ratingLight-Duty
Free length in1
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.5200
Maximum deflection load lb306.00
Maximum deflection load n1361.70
Rod diameter in1/2
Spring rate589.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.5354
Wire shapeTrapezoidal
