Gibraltar

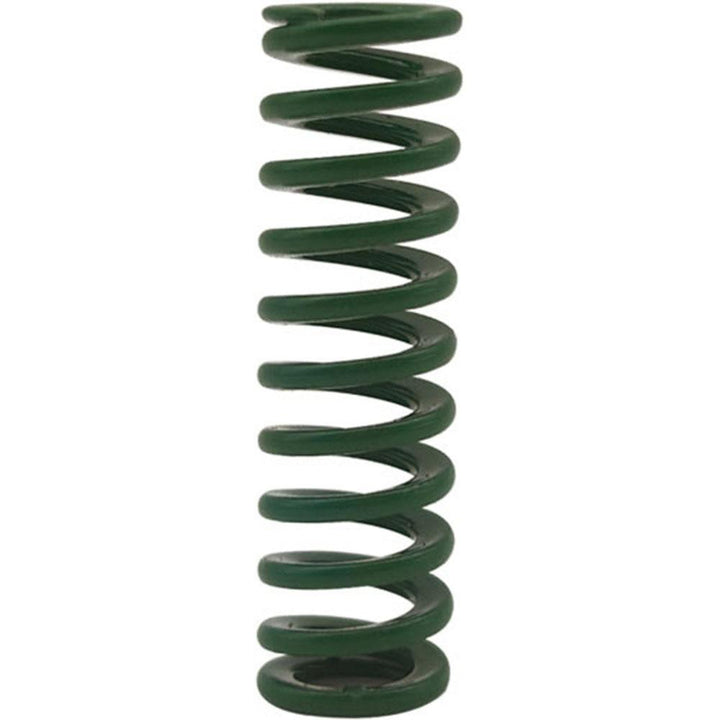

Die Spring - Gibraltar DCIL25-32
MFR# DCIL25-32
$3.51List $4.33
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL25-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load0.69
Duty ratingLight-Duty
Free length in1-1/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6900
Maximum deflection load lb319.00
Maximum deflection load n1419.55
Rod diameter in1/2
Spring rate461.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6831
Wire shapeTrapezoidal
