Gibraltar

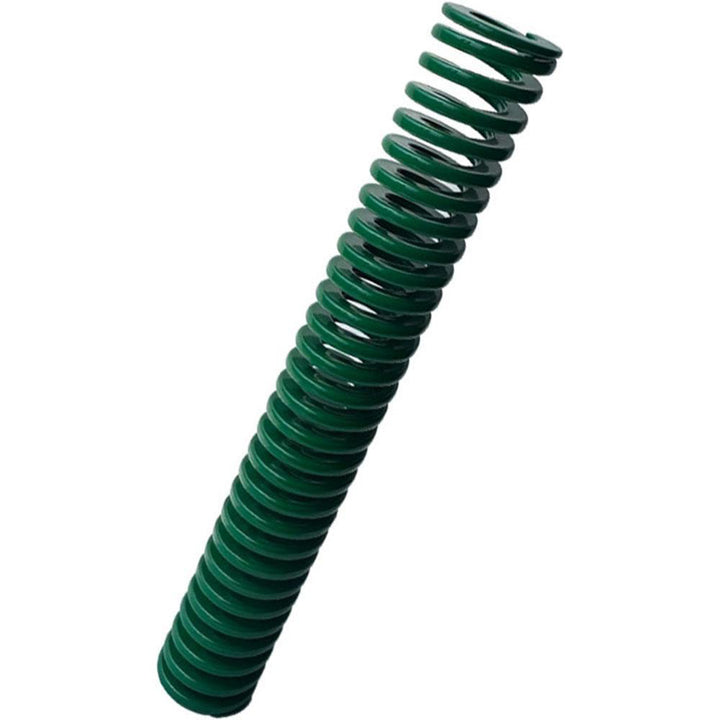

Die Spring - Gibraltar DCIL32-127
MFR# DCIL32-127
$10.07List $12.42
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL32-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load3.2
Duty ratingLight-Duty
Free length in5
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection3.2000
Maximum deflection load lb473.00
Maximum deflection load n2104.85
Rod diameter in5/8
Spring rate147.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load3.2047
Wire shapeTrapezoidal
