Gibraltar

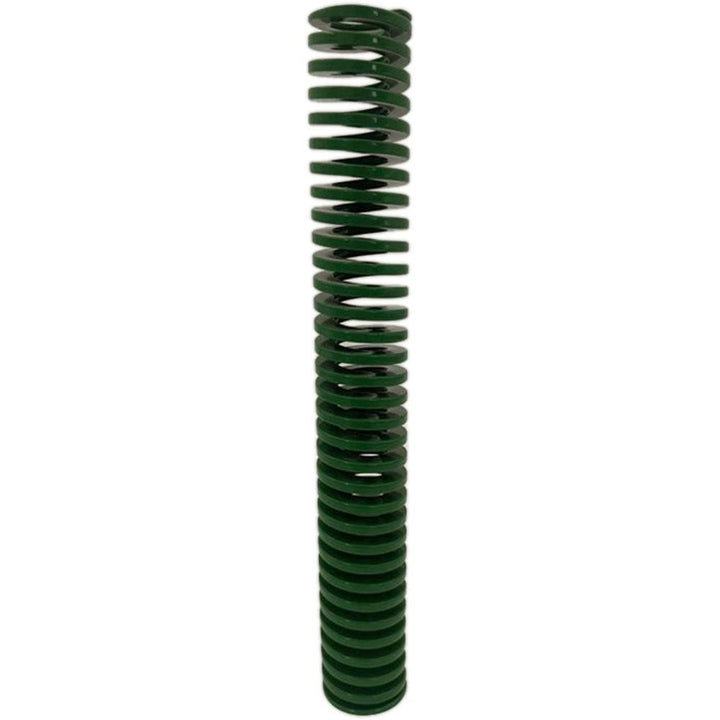

Die Spring - Gibraltar DCIL32-178
MFR# DCIL32-178
$13.28List $16.39
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL32-178 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load4.44
Duty ratingLight-Duty
Free length in7
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection4.4400
Maximum deflection load lb446.00
Maximum deflection load n1984.70
Rod diameter in5/8
Spring rate101.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load4.4291
Wire shapeTrapezoidal
