Gibraltar
Die Spring - Gibraltar DCIL40-127
MFR# DCIL40-127
$14.03List $17.62
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

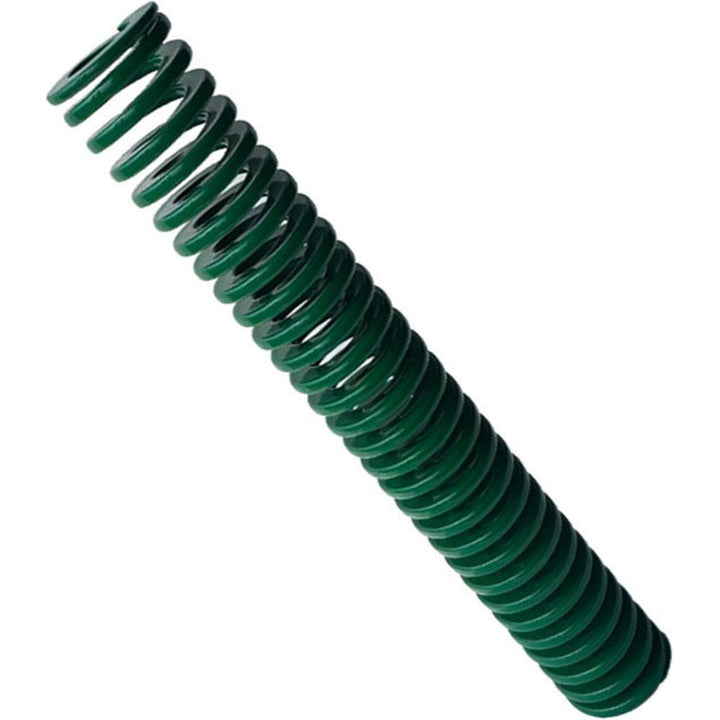

The Gibraltar DCIL40-127 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.57
Duty ratingLight-Duty
Free length in5
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.5700
Maximum deflection load lb576.00
Maximum deflection load n2563.20
Rod diameter in3/4
Spring rate224.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.5709
Wire shapeTrapezoidal
