Gibraltar

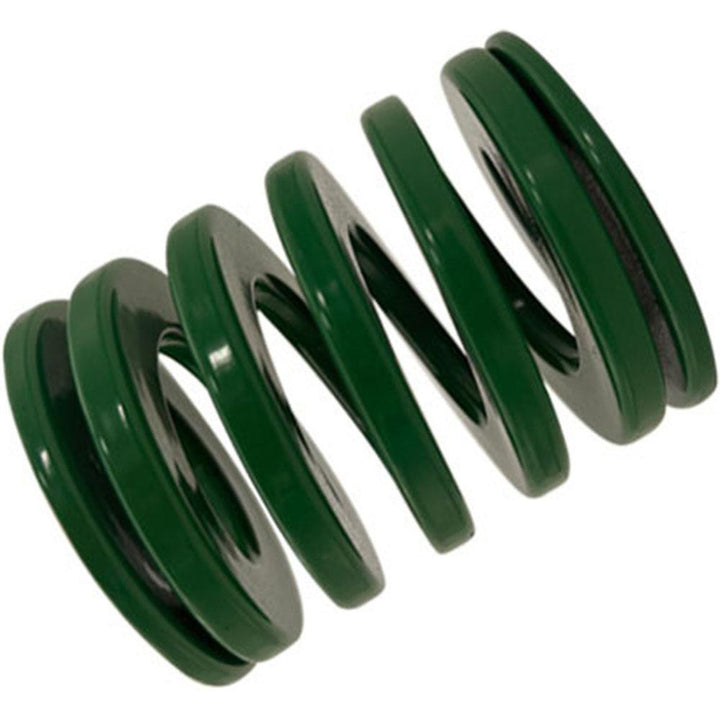

Die Spring - Gibraltar DCIL40-64
MFR# DCIL40-64
$6.93List $8.69
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL40-64 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load1.24
Duty ratingLight-Duty
Free length in2-1/2
Hole diameter in1-1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.2400
Maximum deflection load lb563.00
Maximum deflection load n2505.35
Rod diameter in3/4
Spring rate454.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.2205
Wire shapeTrapezoidal
