Gibraltar

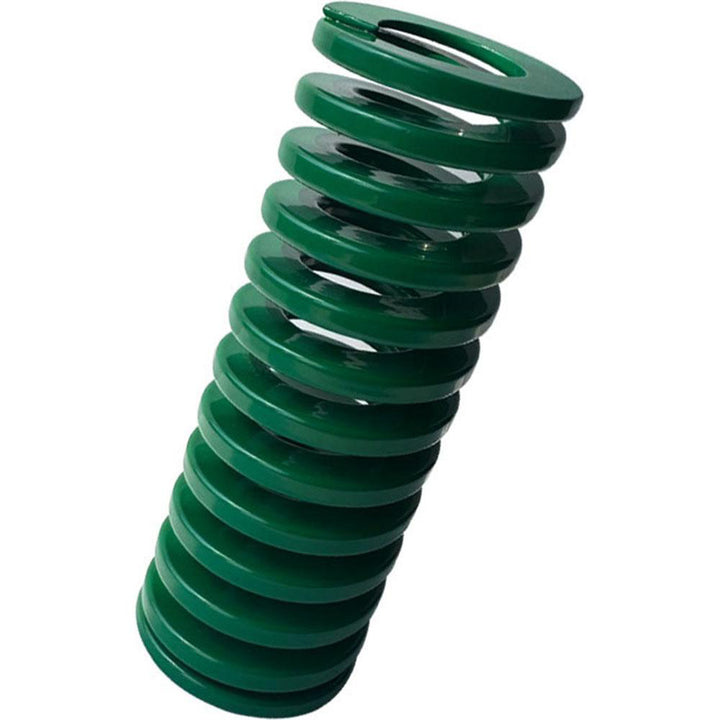

Die Spring - Gibraltar DCIL50-102
MFR# DCIL50-102
$17.54List $22.01
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL50-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load2.45
Duty ratingLight-Duty
Free length in4
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.4500
Maximum deflection load lb1266.00
Maximum deflection load n5633.70
Rod diameter in1
Spring rate516.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.4370
Wire shapeTrapezoidal
