Gibraltar

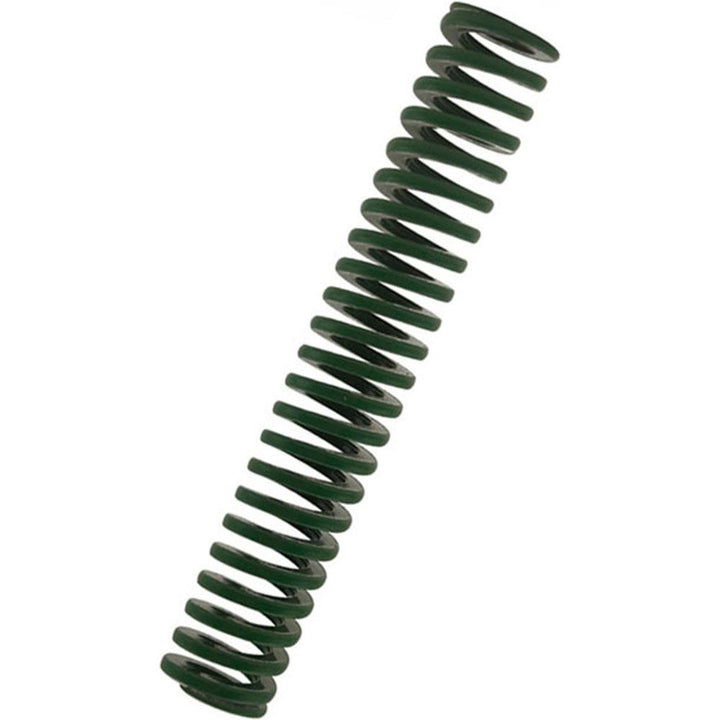

Die Spring - Gibraltar DCIL50-152
MFR# DCIL50-152
$28.88List $36.25
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIL50-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorGreen
Compressed length at maximum load3.61
Duty ratingLight-Duty
Free length in6
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection3.6100
Maximum deflection load lb1175.00
Maximum deflection load n5228.75
Rod diameter in1
Spring rate325.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load3.6299
Wire shapeTrapezoidal
