Gibraltar
Die Spring - Gibraltar DCIM10-32
MFR# DCIM10-32
$1.55List $1.92
Save 19%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

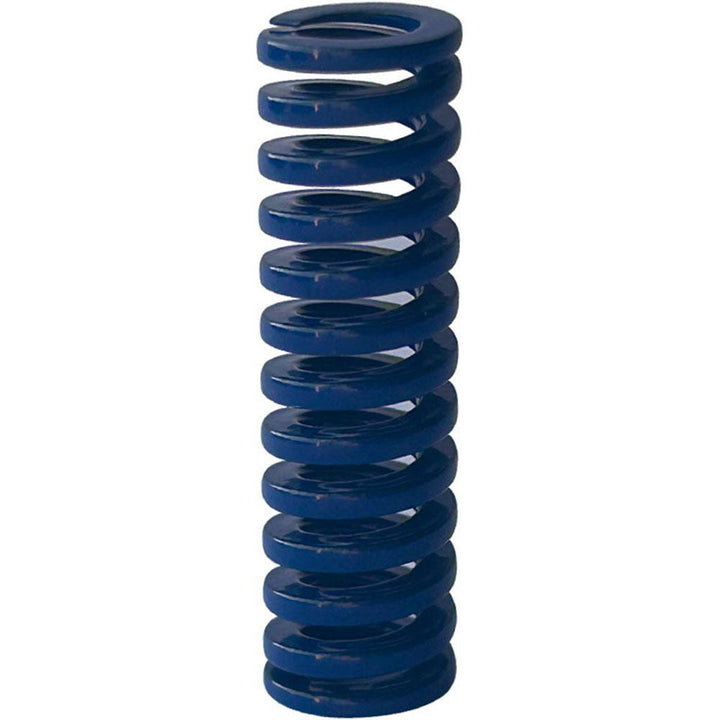

The Gibraltar DCIM10-32 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.68
Duty ratingMedium-Duty
Free length in1-1/4
Hole diameter in3/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.6800
Maximum deflection load lb52.00
Maximum deflection load n231.40
Rod diameter in3/16
Spring rate77.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.6673
Wire shapeTrapezoidal
