Gibraltar

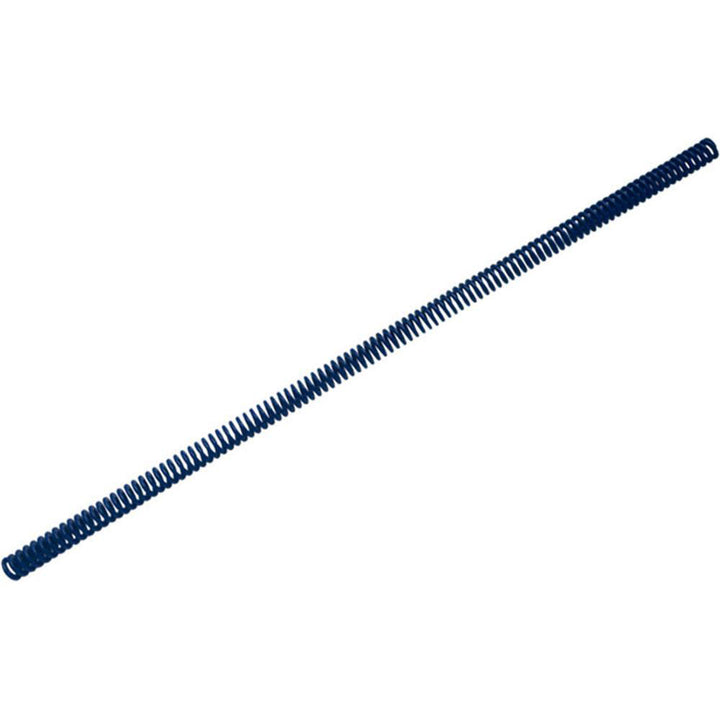

Die Spring - Gibraltar DCIM12.5-305
MFR# DCIM12.5-305
$10.88List $13.66
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM12.5-305 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load6.35
Duty ratingMedium-Duty
Free length in12
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection6.3500
Maximum deflection load lb78.00
Maximum deflection load n347.10
Rod diameter in9/32
Spring rate12.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load6.3386
Wire shapeTrapezoidal
