Gibraltar

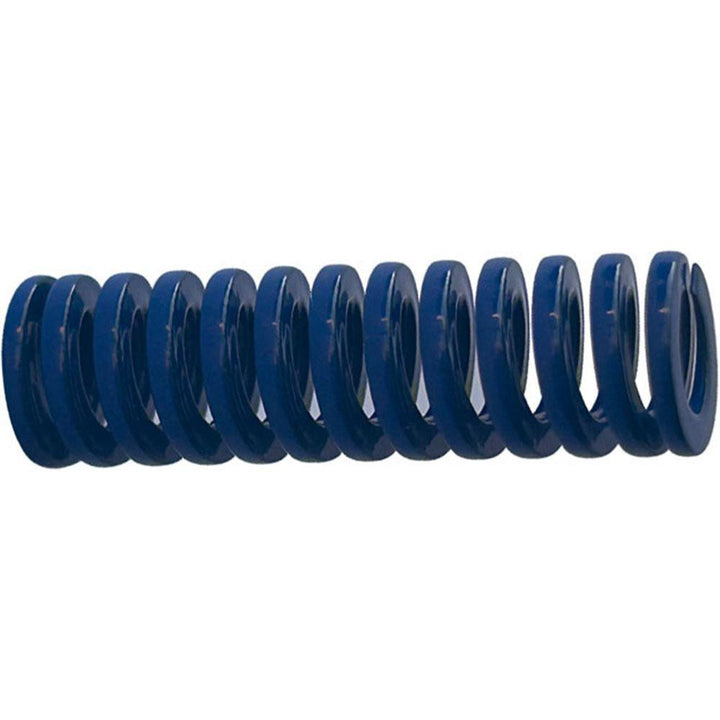

Die Spring - Gibraltar DCIM12.5-38
MFR# DCIM12.5-38
$2.03List $2.55
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM12.5-38 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.78
Duty ratingMedium-Duty
Free length in1-1/2
Hole diameter in1/2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7800
Maximum deflection load lb84.00
Maximum deflection load n373.80
Rod diameter in9/32
Spring rate107.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7874
Wire shapeTrapezoidal
