Gibraltar

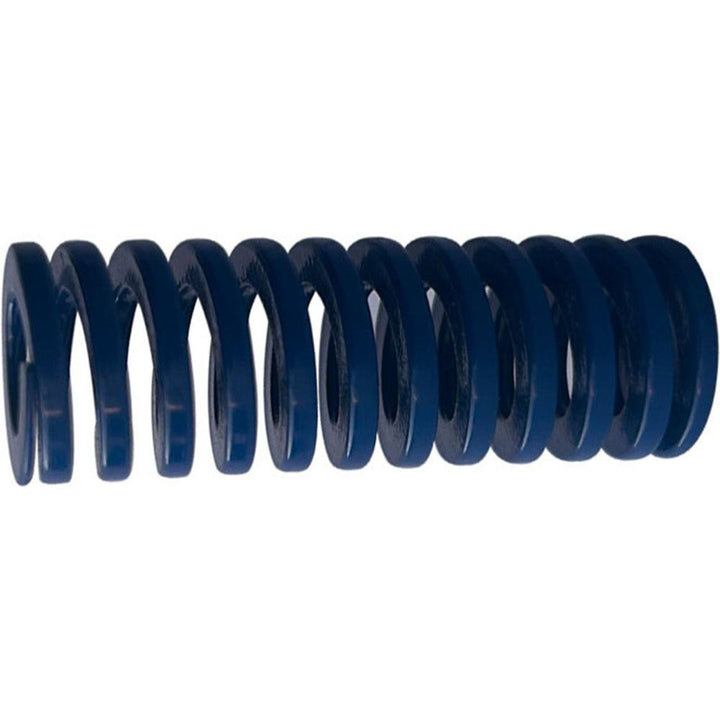

Die Spring - Gibraltar DCIM16-44
MFR# DCIM16-44
$2.46List $3.09
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM16-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.84
Duty ratingMedium-Duty
Free length in1-3/4
Hole diameter in5/8
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.8400
Maximum deflection load lb147.00
Maximum deflection load n654.15
Rod diameter in11/32
Spring rate175.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.8602
Wire shapeTrapezoidal
